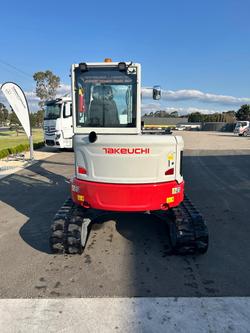

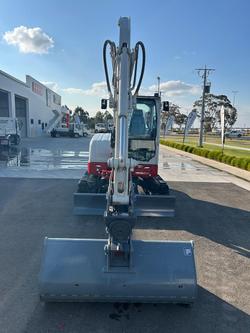

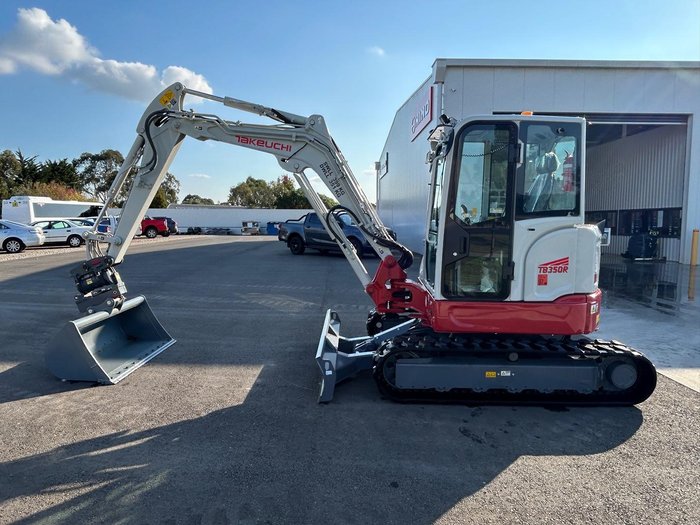

2024 Takeuchi Tb350r Reduced Radius Excavator

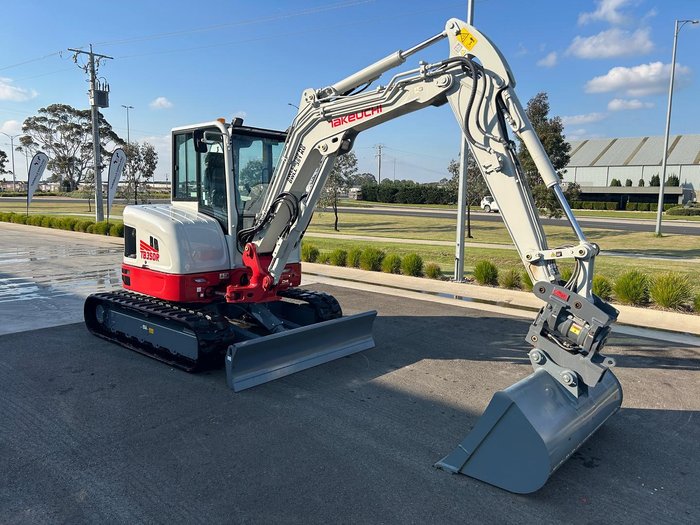

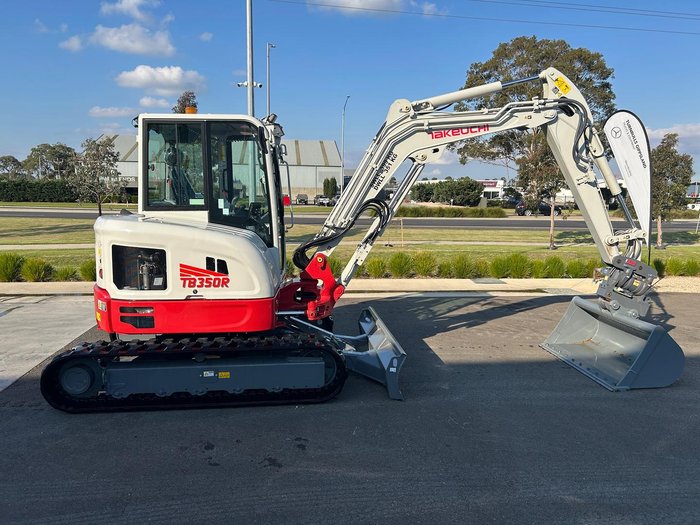

Takeuchi TB350R Reduced Radius Excavator – Compact, Powerful & Smart
Operating Weight: 5,085 kg

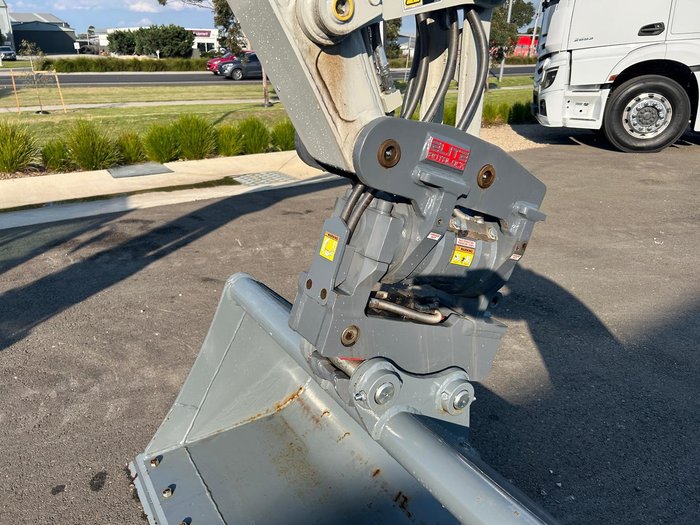

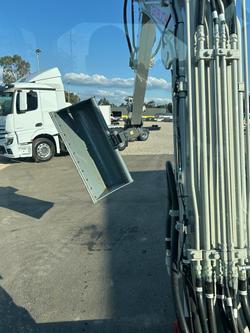

Includes Elite RotaLOCK Tilt Hitch and 300mm, 450mm and 600mm

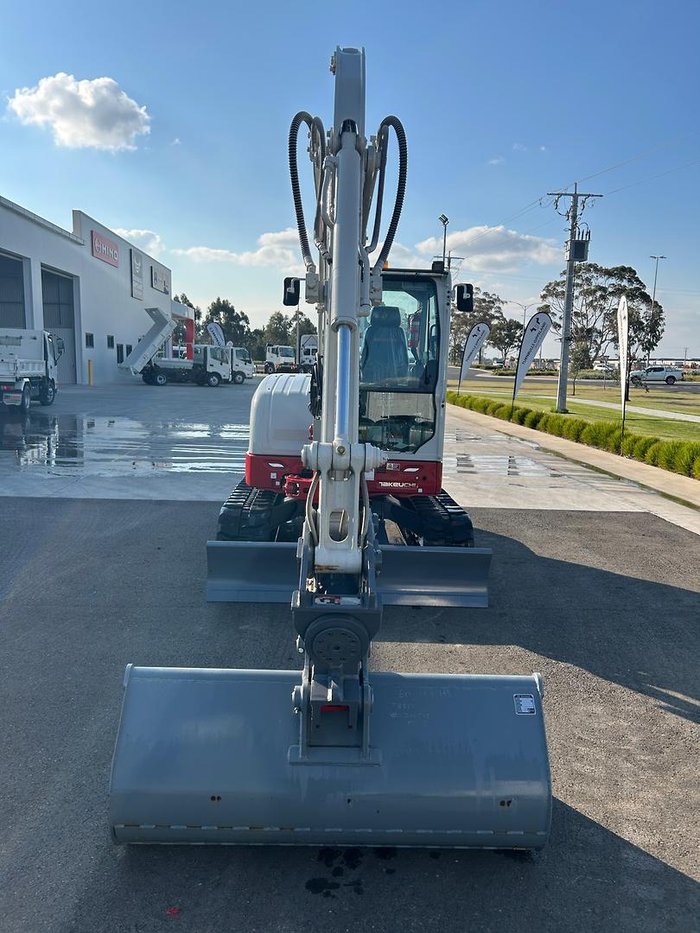

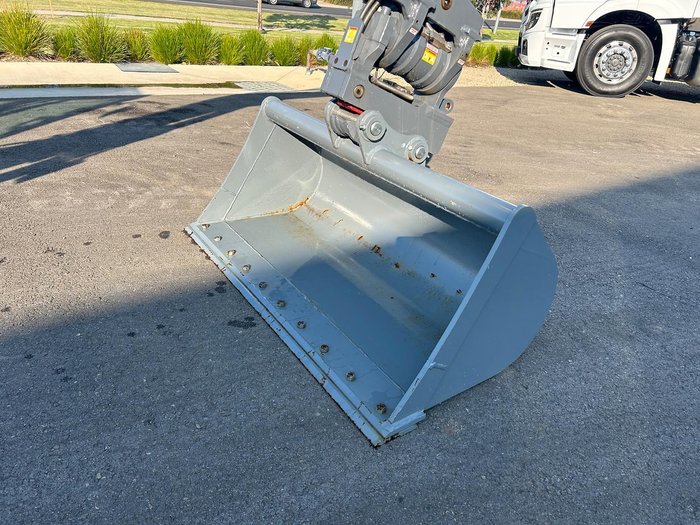

buckets with teeth, 1500mm mud bucket & ripper

Highlights:
Short Tail Swing Design – Perfect for tight-access sites

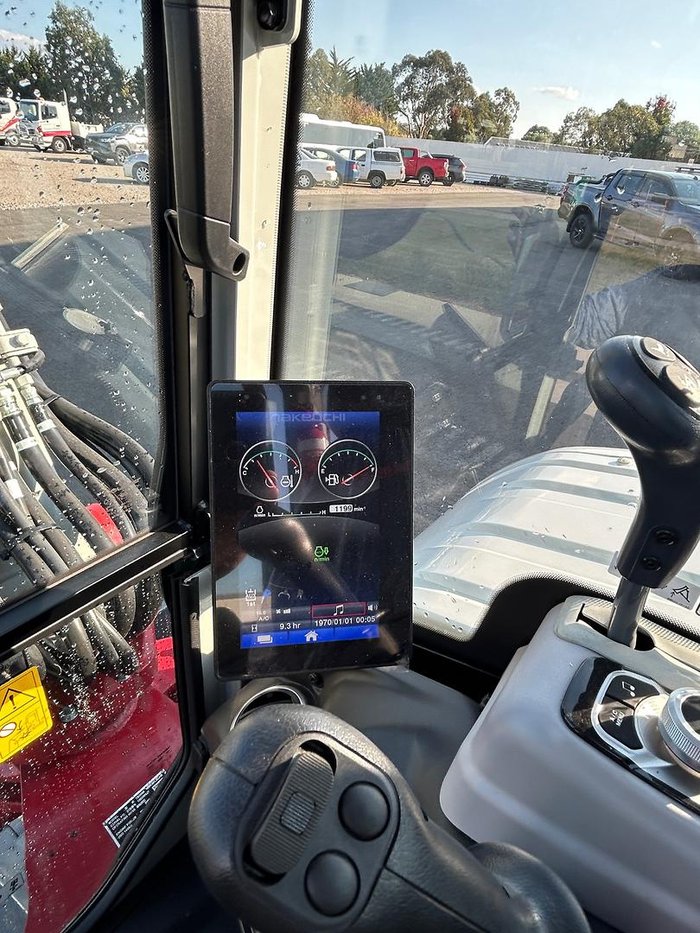

Advanced 7" Touchscreen Display

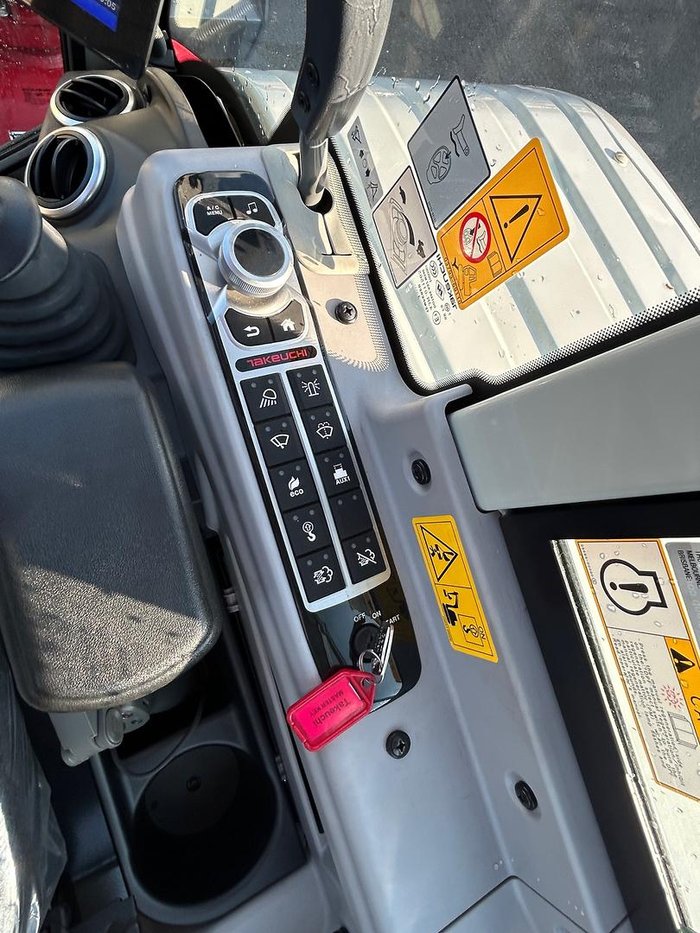

Multi-function Joystick & Jog Dial Controls
Up to 4 Hydraulic Service Ports for high versatility
Dig Depth: 3,575 mm | Reach: 6,065 mm | Dump Height: 3,945 mm
Ideal For: Construction, Demolition, Landscaping, Rental & More

Performance & Power:

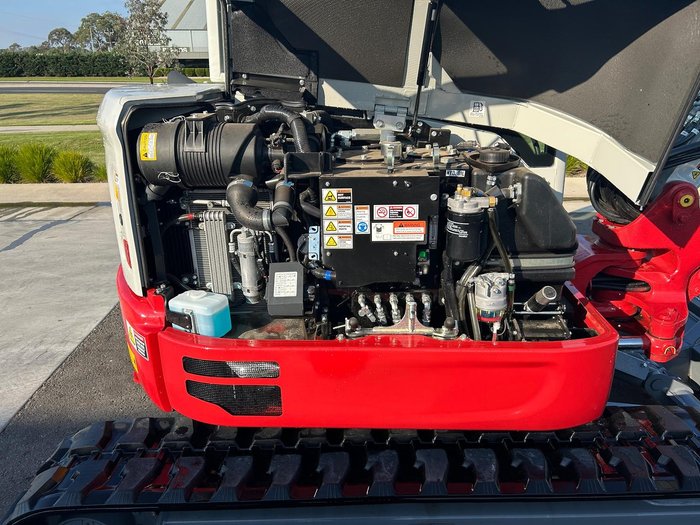

Engine: Kubota V2607, 32.4 kW @ 2,000 rpm
Max Torque: 180.1 Nm @ 1,500 rpm
Emissions: EU Stage V / EPA Tier 4 Compliant
Swing Speed: 8.9 rpm
Traction Force: 54.8 kN
Gradeability: 30°
Travel Speeds: 2.8 km/h (low) / 5.0 km/h (high)
Breakout Force (Bucket): 37.3 kN
Digging Force (Arm): Up to 25.0 kN

Hydraulic System:
Variable displacement pump with straight travel circuit
Proportional joystick control for Service Ports 1 & 2
Up to 4 auxiliary ports, fully adjustable flow and pressure
Hydraulic tank with sight gauge
Hydraulic quick hitch circuit
Cushioned boom, arm & swing cylinders
Boom swing angle: 71° Left / 55° Right

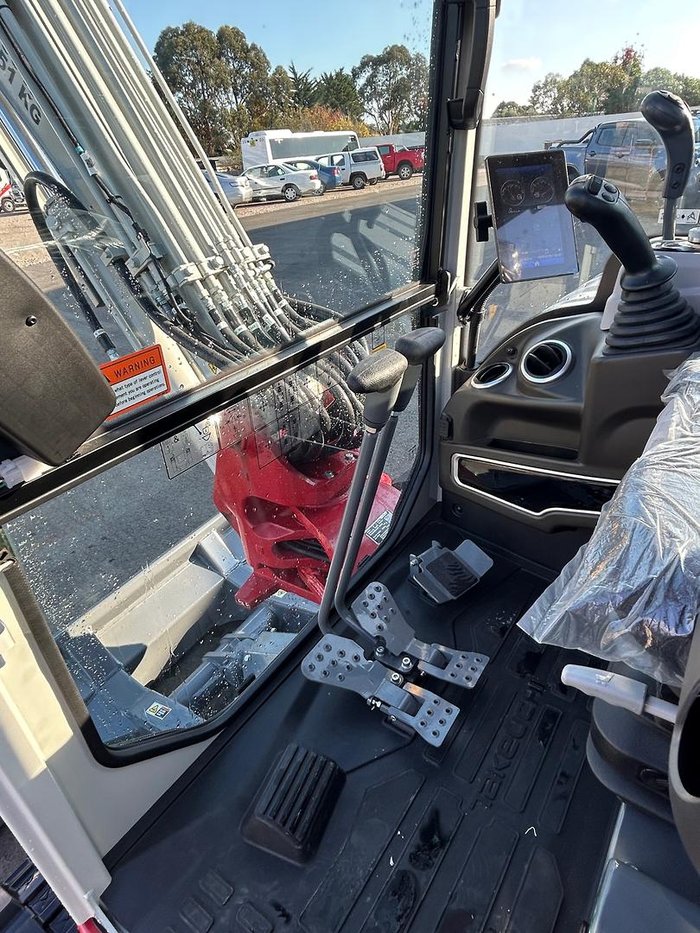

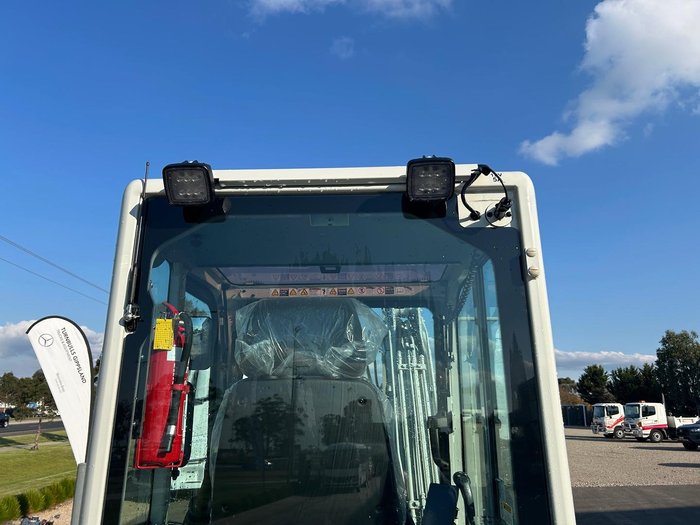

Operator’s Cabin:
Automotive-styled interior with intuitive controls

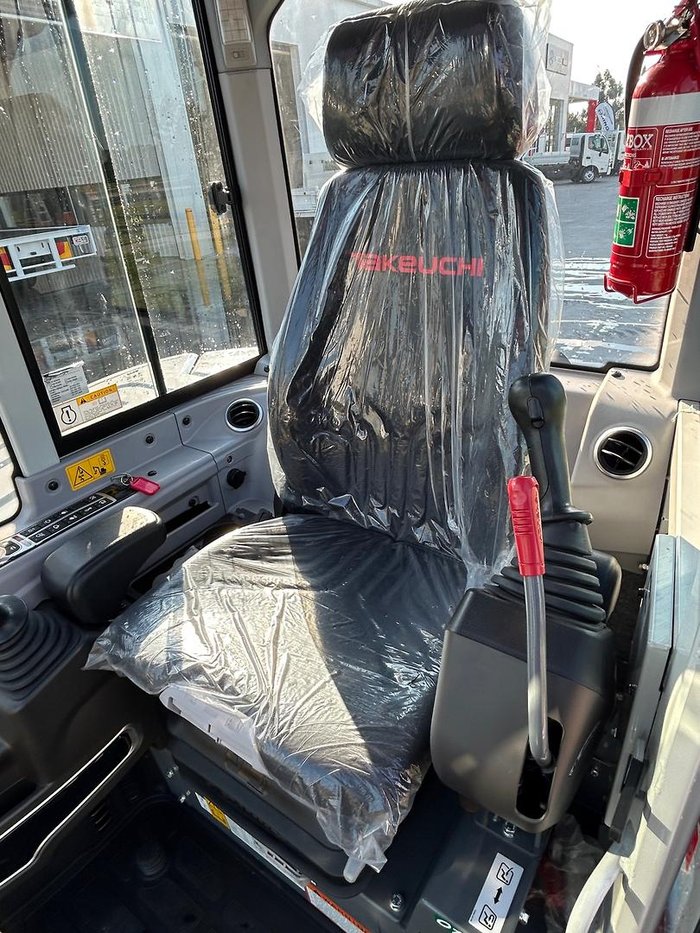

Deluxe High-Back Suspension Seat with Headrest
Touchscreen multifunction monitor
Spacious floor area with footrest
Cabin includes:
A/C, heat, defrost, skylight, DAB Bluetooth radio

Chassis & Undercarriage:
2-Speed auto-shift travel

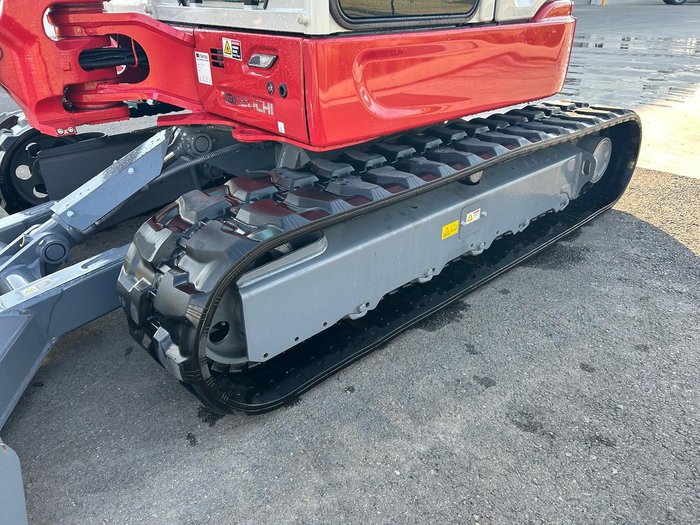

400 mm rubber crawlers
Triple flange track rollers
Sloped frame with open centers
Large wrap-around counterweight

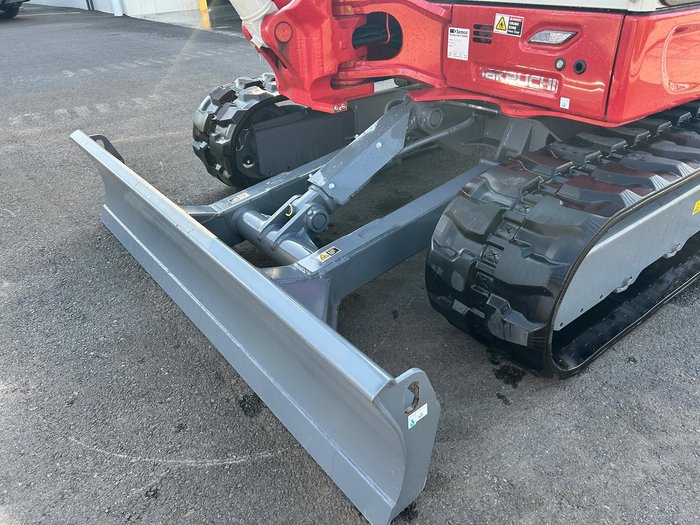

Heavy-duty dozer blade with float

Serviceability:

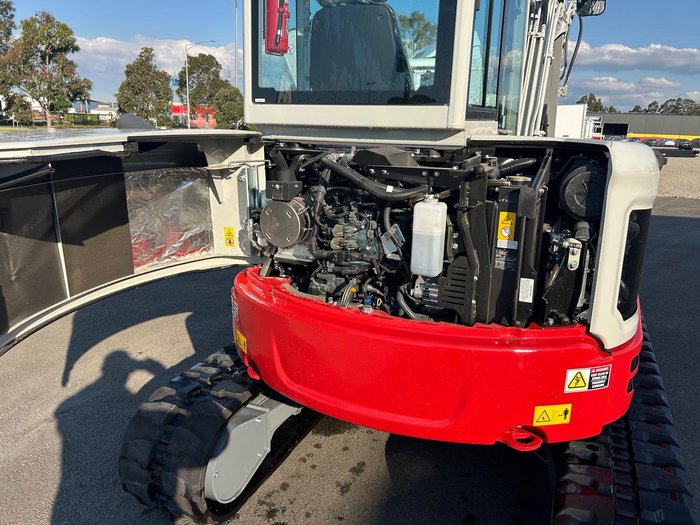

Wide-opening engine and side hoods
Easy access to filters, battery, hydraulic components
Fuel bleed system & sight gauges

Key Dimensions
Max Reach: 6,065 mm
Max Dig Depth: 3,575 mm
Dump Height: 3,945 mm
Overall Width: 2,000 mm
Overall Length: 5,390 mm
Height: 2,540 mm
Ground Clearance: 335 mm

Safety & Health:
ROPS/TOPS/OPG (Level I) compliant
2" retractable seat belt
Sound Power Level: 97 dB
Hand/Arm Vibration: < 2.5 m/s²
Body Vibration: < 0.5 m/s²
