2025 Takeuchi Tb225 Compact Excavator And Trailer Package

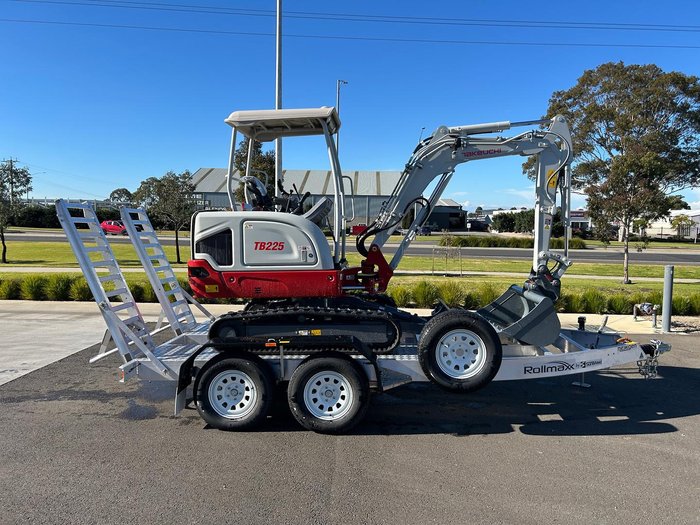

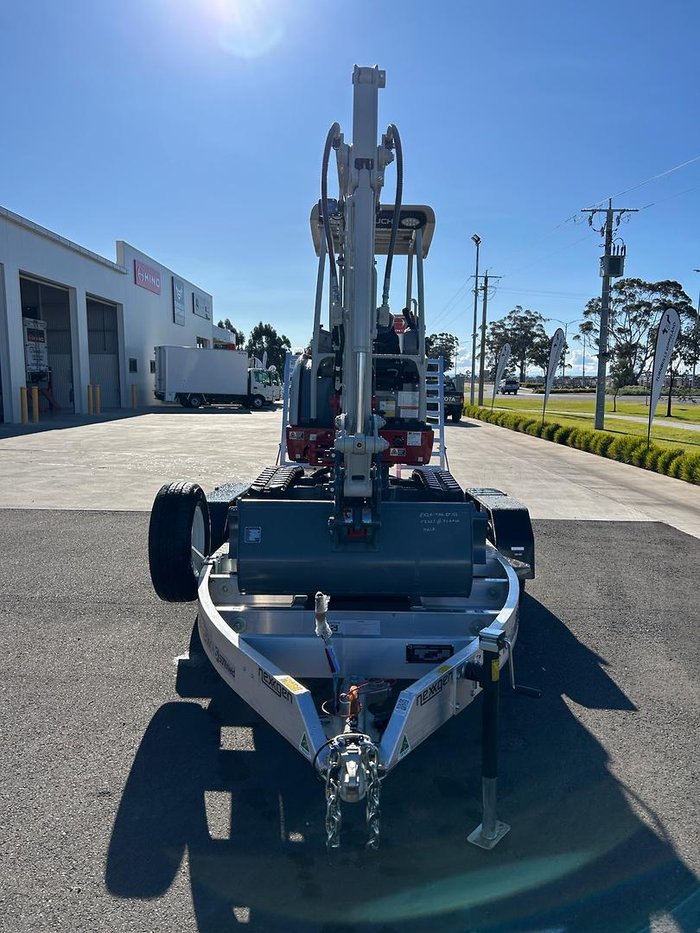

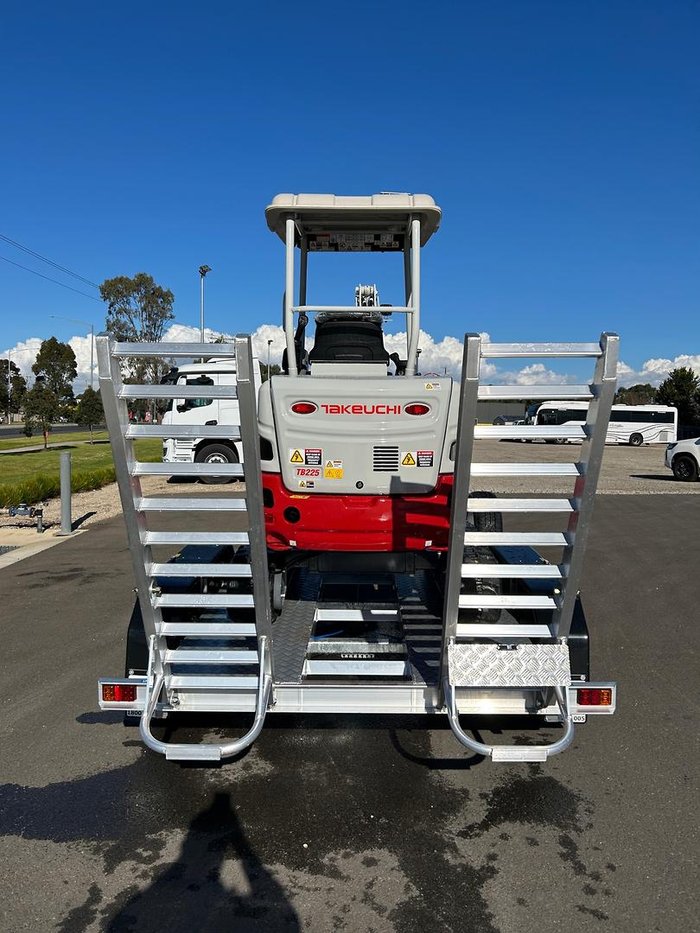

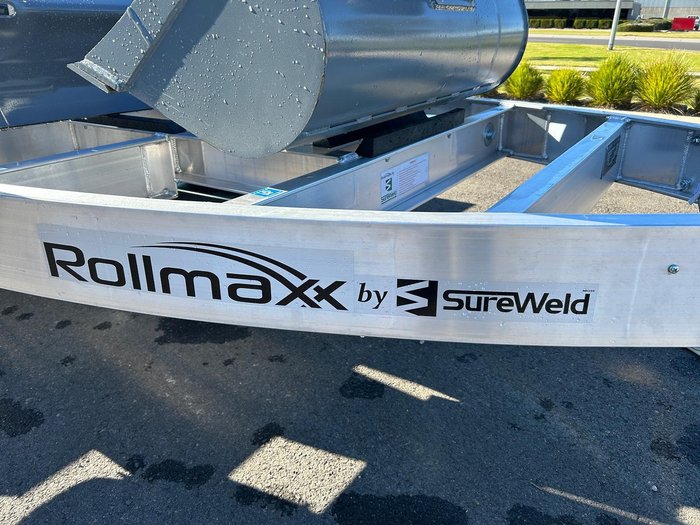

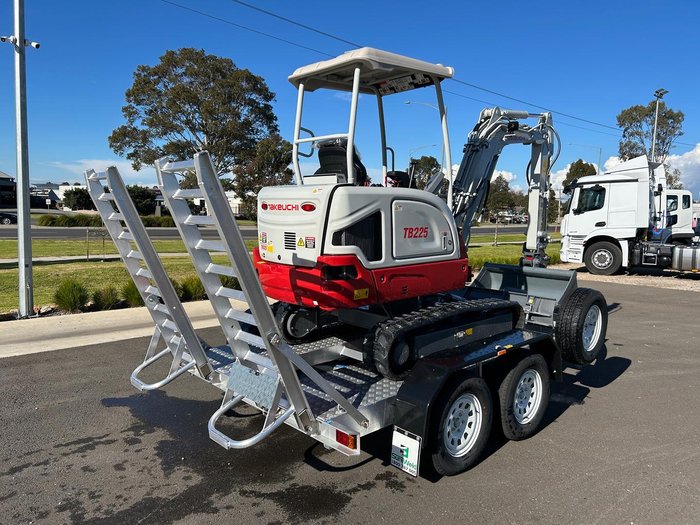

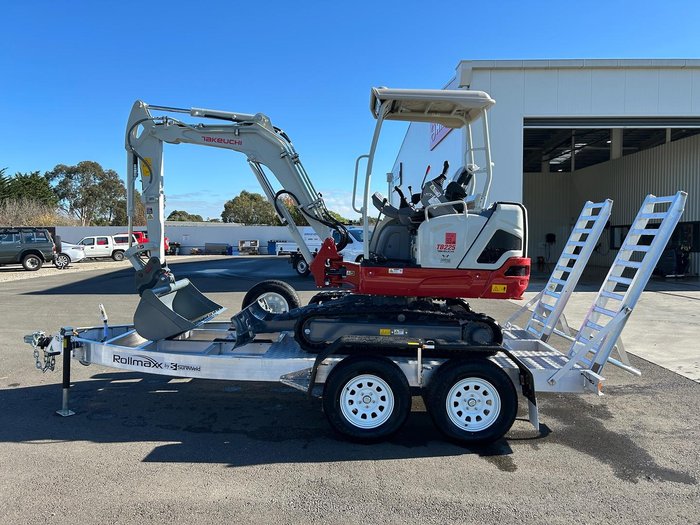

Takeuchi TB225 Compact Excavator and Sureweld SW3500 Aluminium Trailer Package

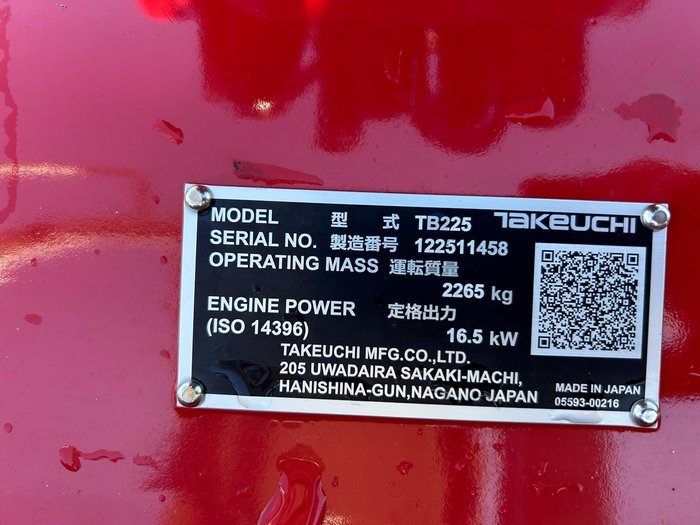

Machine Operating Weight: 2,265 kg

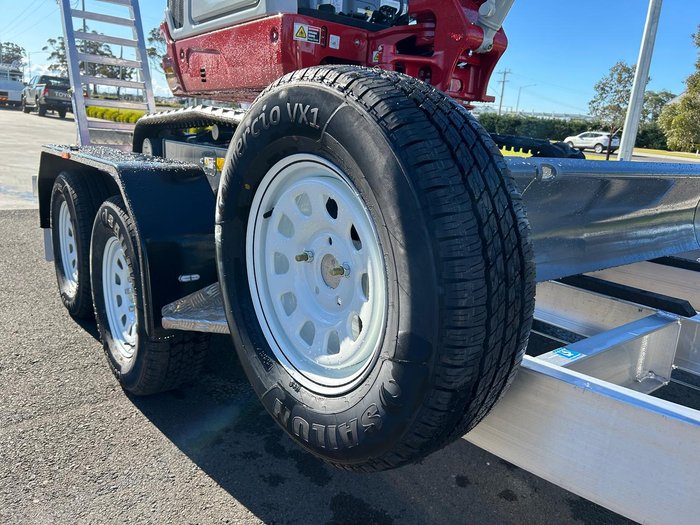

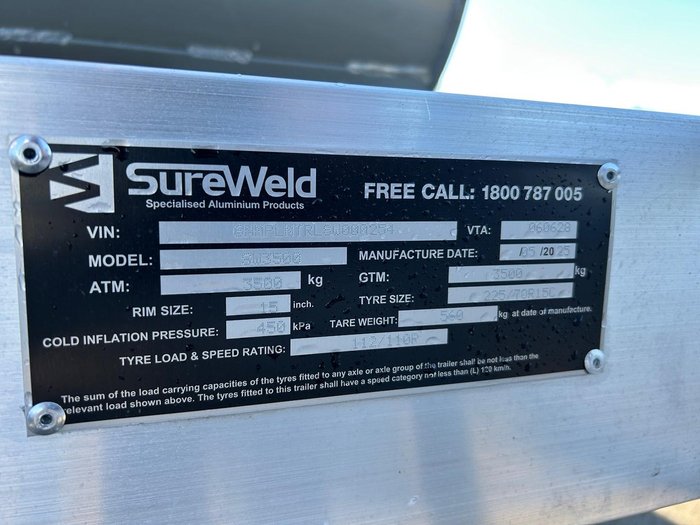

Trailer - 3,500kg
Trailer Tare Weight - 560kg

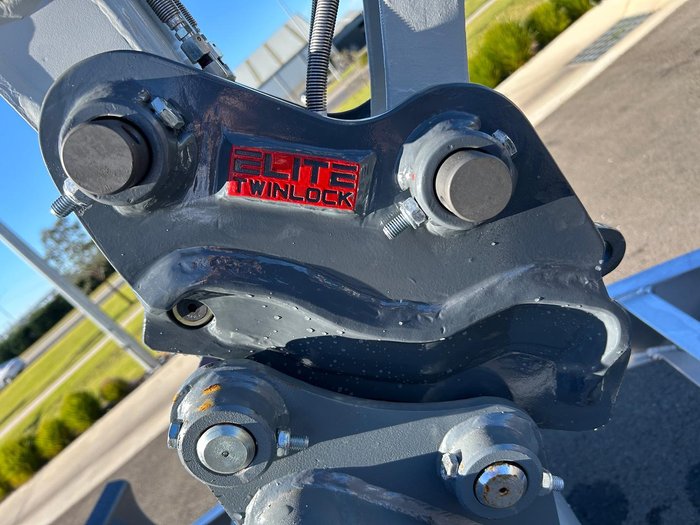

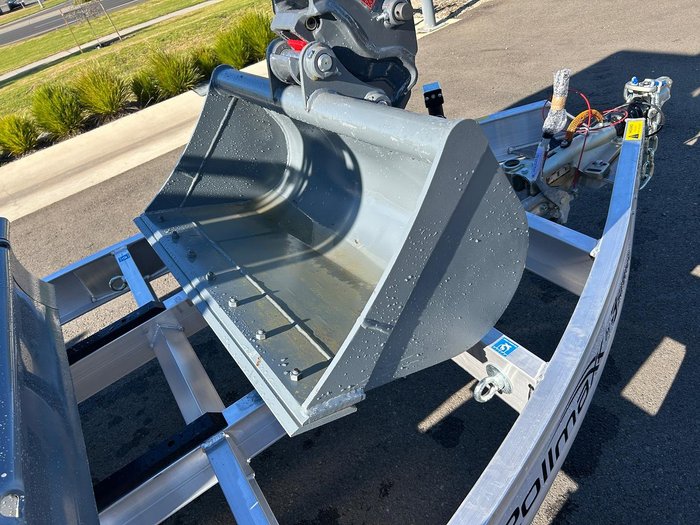

Includes Elite Hydraulic Quick Hitch, 200mm, 300mm and 450mm buckets with teeth, 1000mm
mud bucket & ripper


Key Features:
EU Stage V Emission Compliant Yanmar Engine
Automatic Fuel Bleed System & Auto Deceleration

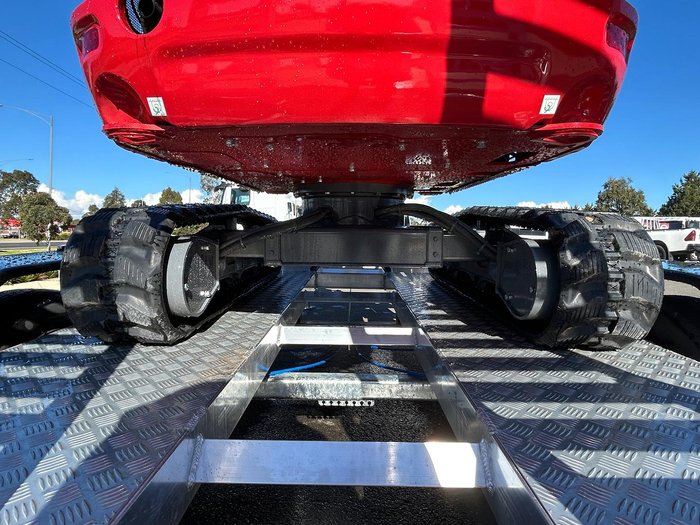

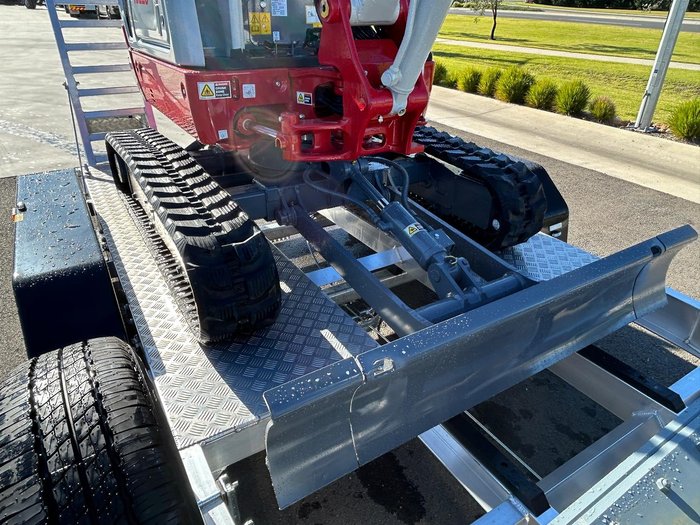

Hydraulically Retractable Track Frame (1,100–1,500 mm)
Spacious ROPS/TOPS/OPG Canopy
Wraparound Protective Counterweight
Smooth Hydraulic Joystick Controls
Independent Mono Boom Swing with Cushioned Cylinders
All-Steel Construction for Maximum Durability

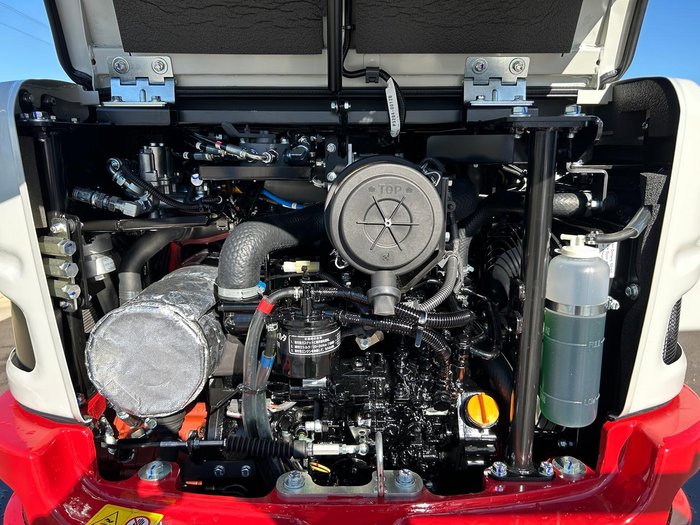

Engine:
Model: Yanmar 3TNV82A
Rated Output: 16.5 kW @ 2,200 rpm
Maximum Torque: 84.1 Nm @ 1,320 rpm
Displacement: 1,330 ml
Emission Standard: EU Stage V Compliant
Features: Engine Preheat, Extended Life Coolant, Double Element Air Cleaner (optional), Engine Safety Start System

Electrical:

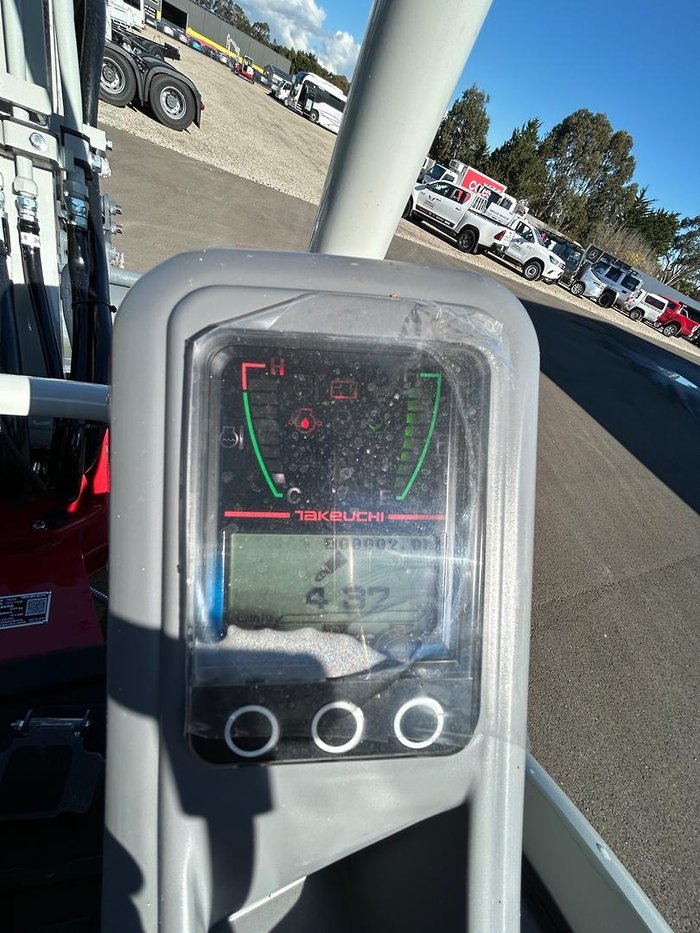

Multi-informational Display & Hour Meter
12V System with 40A Alternator & Battery Switch

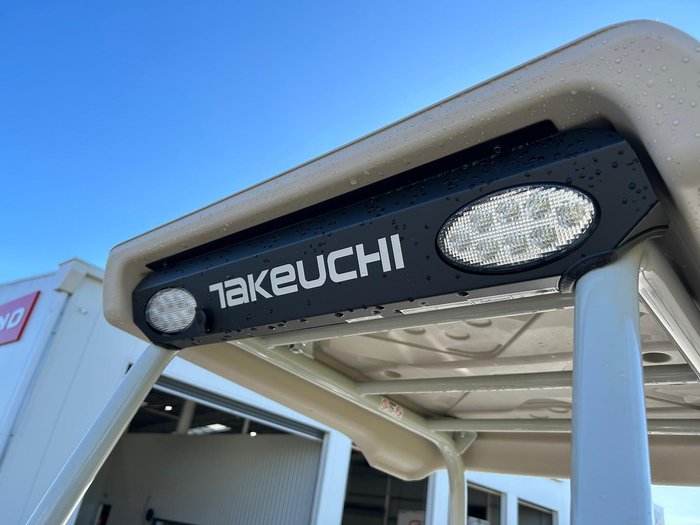

LED Canopy & Boom Work Lights
Travel Alarm

Hydraulics:
Variable Displacement Pump + Gear Pump
Auxiliary Flow (Service Ports):
Port 1: 38.5 L/min @ 21.0 MPa (Proportional, Adjustable, Detent)
Service Port 3 for Quick Hitch
Hydraulic Selector Valve (1-way / 2-way)
Auxiliary Circuit Plumbed to Arm

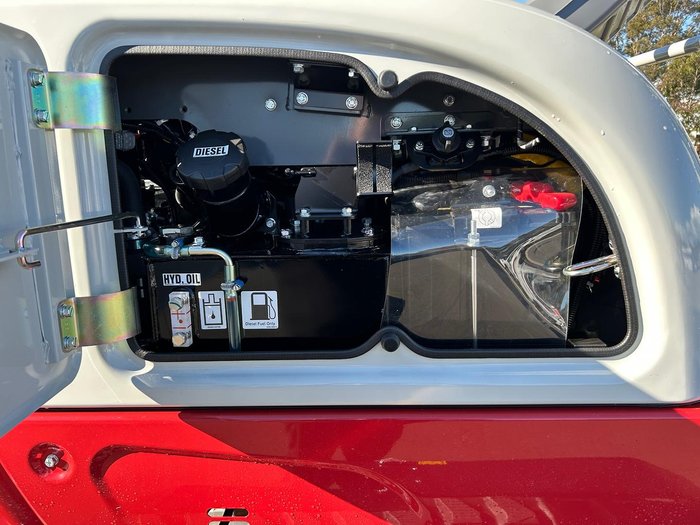

Hydraulic Tank with Fluid Sight Gauge

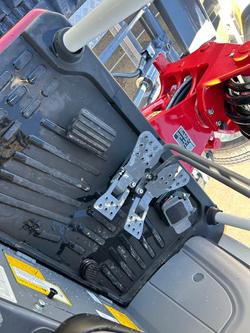

Operator’s Station:
ROPS / TOPS / OPG Canopy

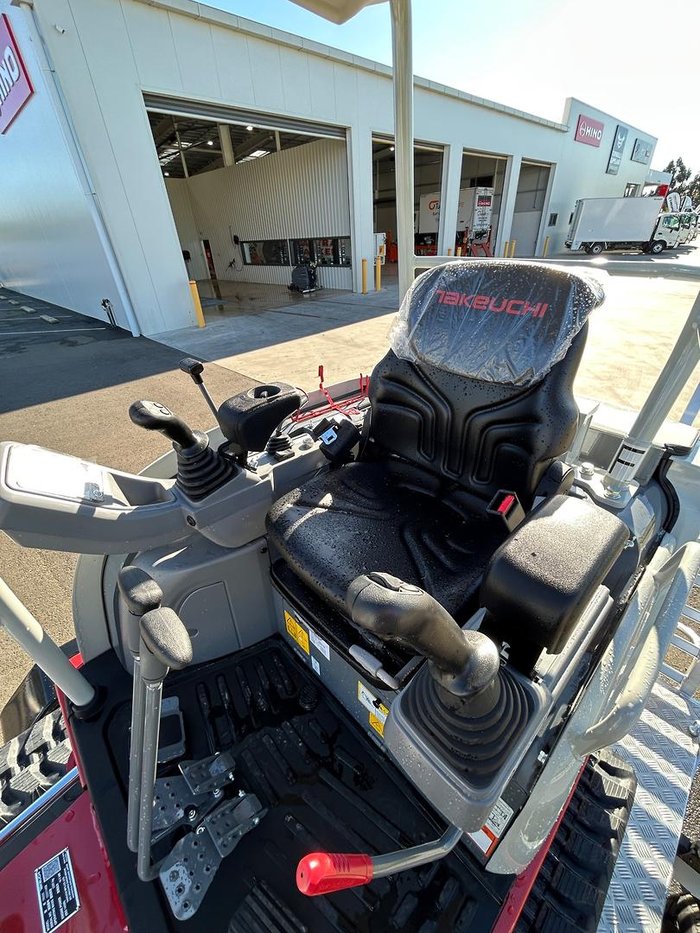

Adjustable Suspension Seat with Head Rest & 2" Retractable Seat Belt

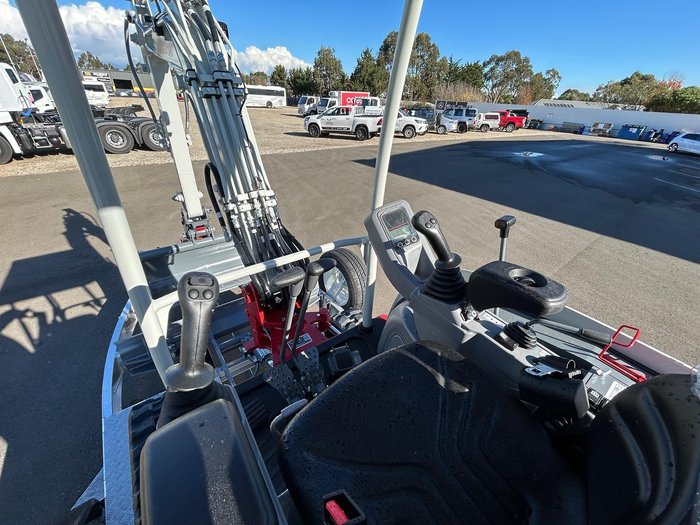

Easy-to-Reach Pilot-Operated Joystick Controls
Spacious Operator Layout with Excellent Visibility

Operating Performance:
Operating Weight: 2,265 kg
Bucket Capacity: 0.064 m³
Slew Speed: 9.7 rpm
Travel Speeds: 1st – 2.5 km/h | 2nd – 4.2 km/h
Gradeability: 30°
Bucket Breakout Force: 19.3 kN
Arm Digging Force: 13.8 kN (1,120 mm arm) | 12.8 kN (1,245 mm arm)
Traction Force: 26.7 kN
Boom Swing Angle: 75° Left / 55° Right

Dimensions:
Max Reach: 4,375 mm
Max Dig Depth: 2,580 mm
Max Dump Height: 2,875 mm
Overall Width: 1,100 mm (Retracted) / 1,500 mm (Extended)
Overall Height: 2,355 mm
Ground Clearance: 190 mm

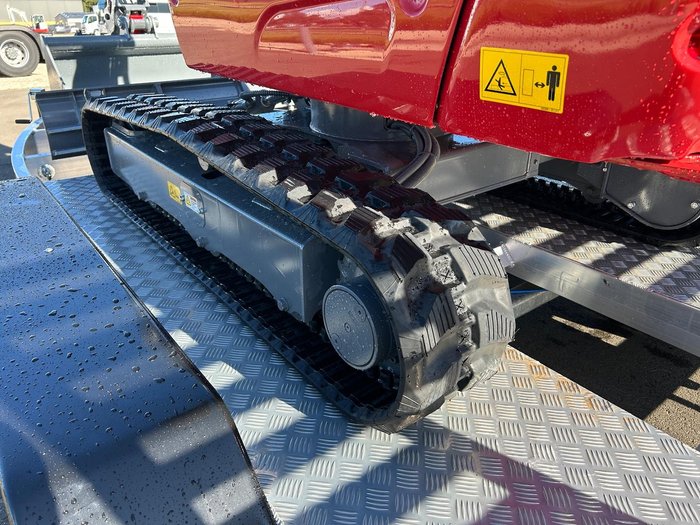

Crawler Shoe Width: 250 mm

Fluid Capacities:
Engine Lubrication: 3.6 L
Cooling System: 4.3 L
Fuel Tank: 30.5 L
Hydraulic Reservoir: 26.0 L
Hydraulic System: 36.0 L

The Takeuchi TB225 delivers class-leading power, durability, and operator comfort — perfect for demanding applications in construction, landscaping, and civil works.

Finance & delivery options available. Book your inspection or demo today.
