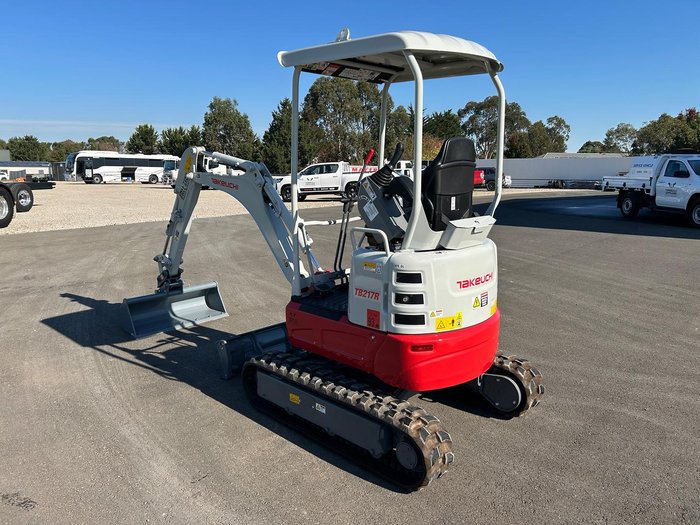

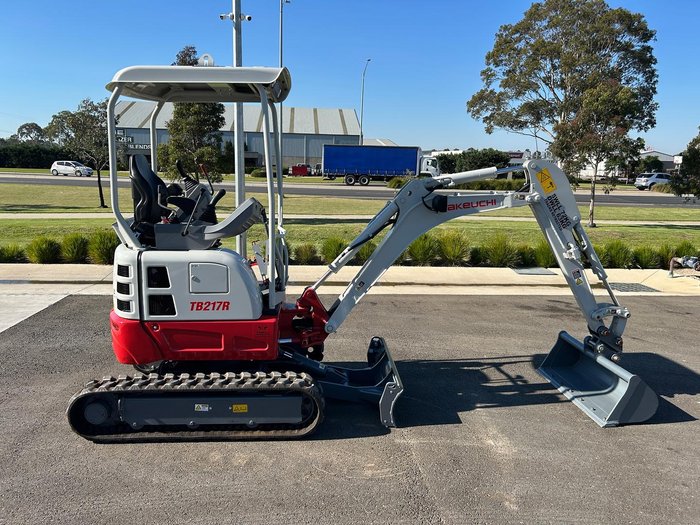

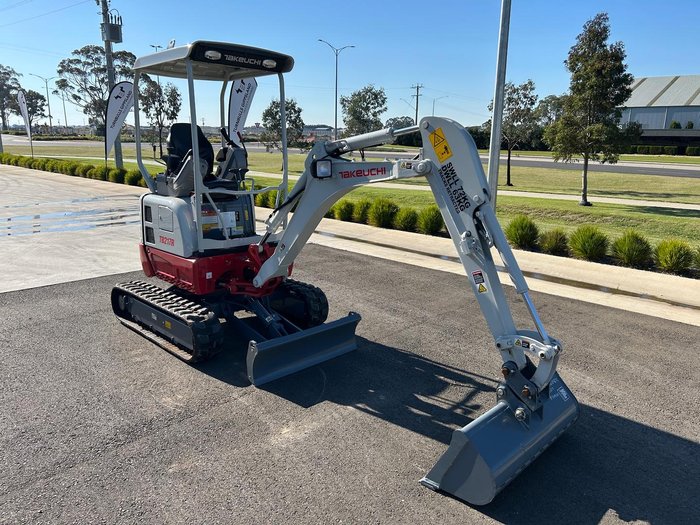

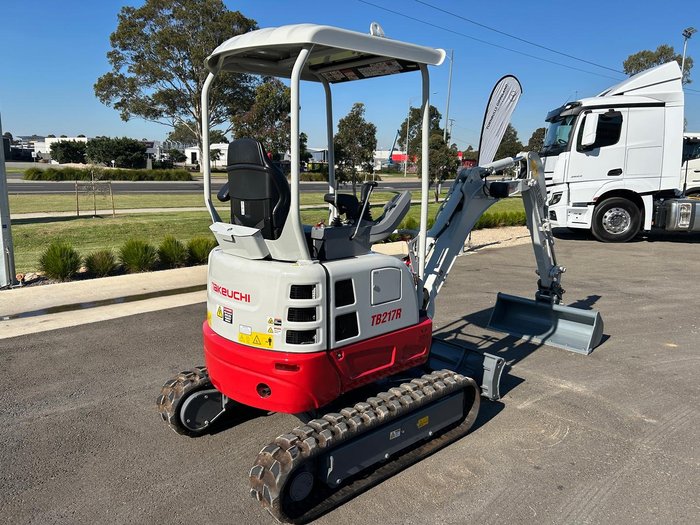

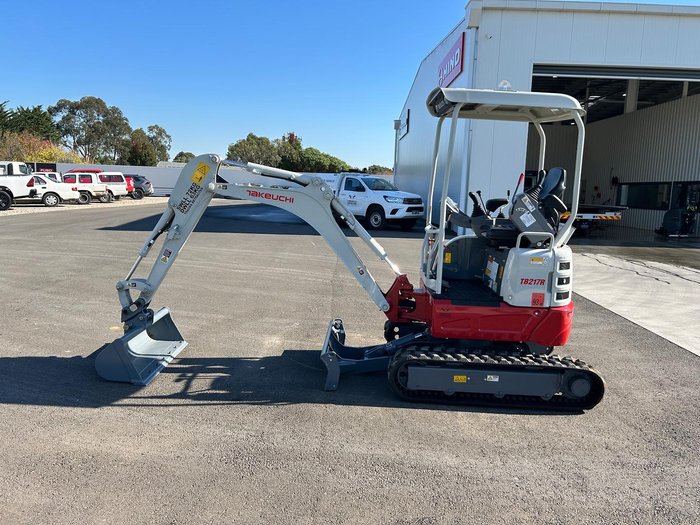

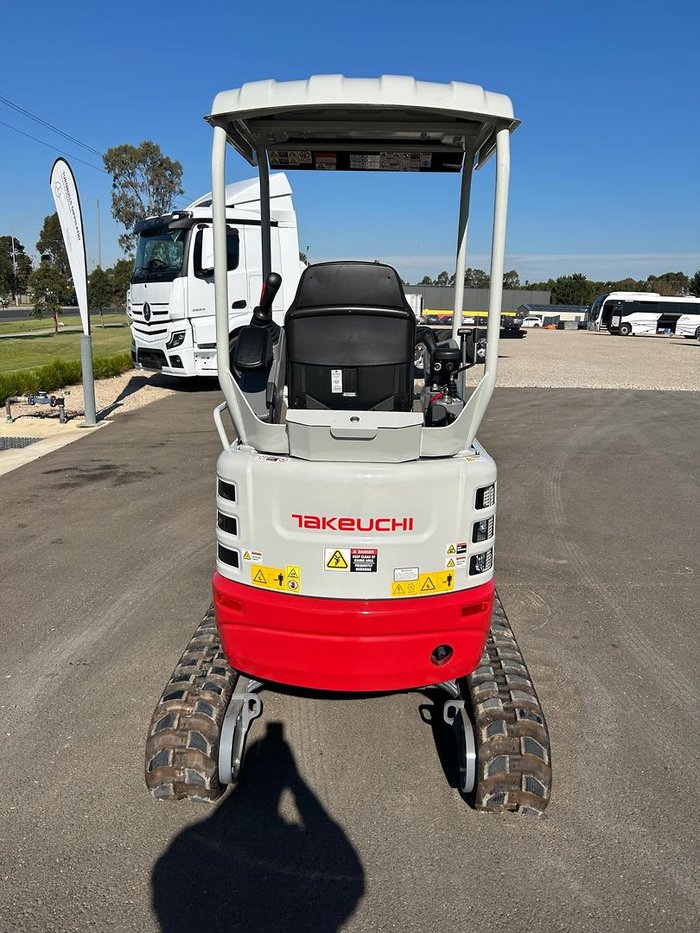

2025 Takeuchi Tb217r Reduced Radius Excavator

Takeuchi TB217R Reduced Radius Excavator – Tough, Powerful, Reliable
Operating Weight: 1,680 kg

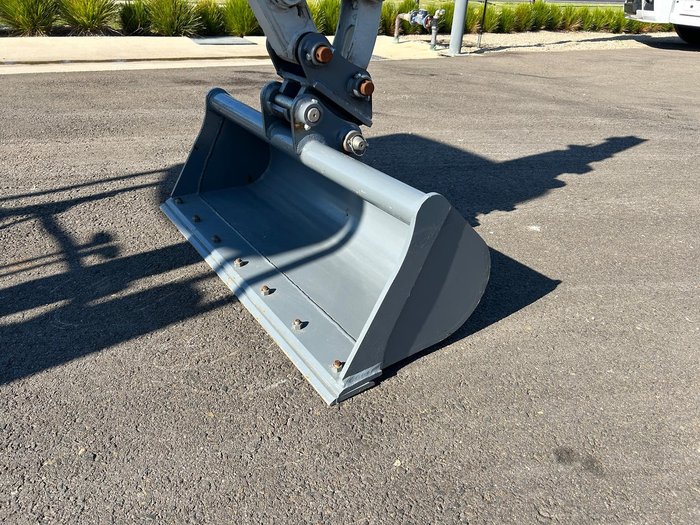

Includes Half hitch, 200mm, 300mm and 450mm buckets with teeth, 1000mm
mud bucket & ripper

Key Features:
Short Tail Swing – Ideal for confined spaces
Hydraulically Retractable Tracks – Access doorways and tight job sites with ease
2-Speed Travel with Auto Shift

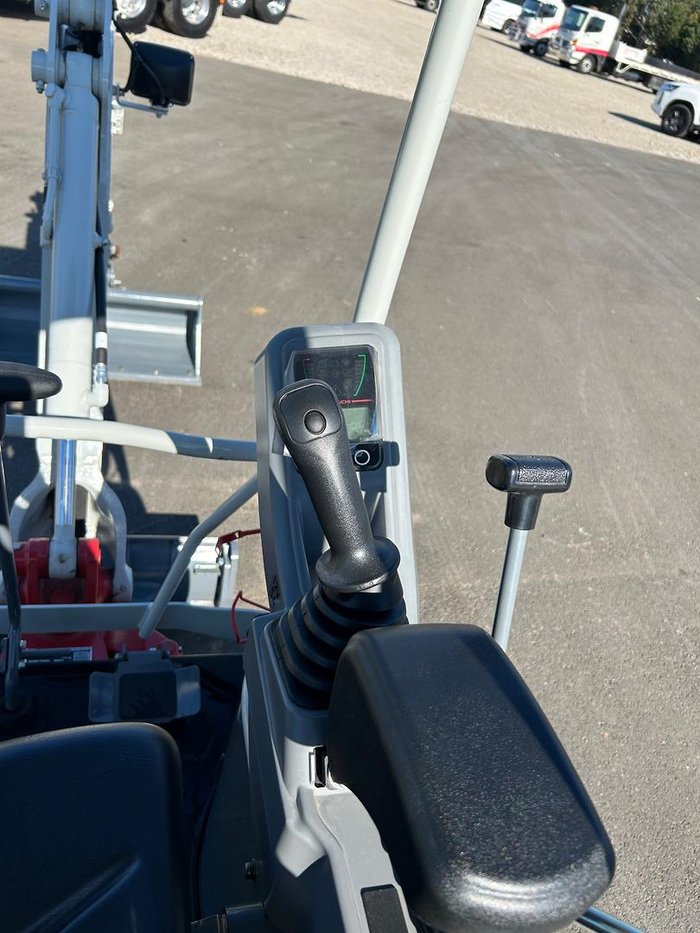

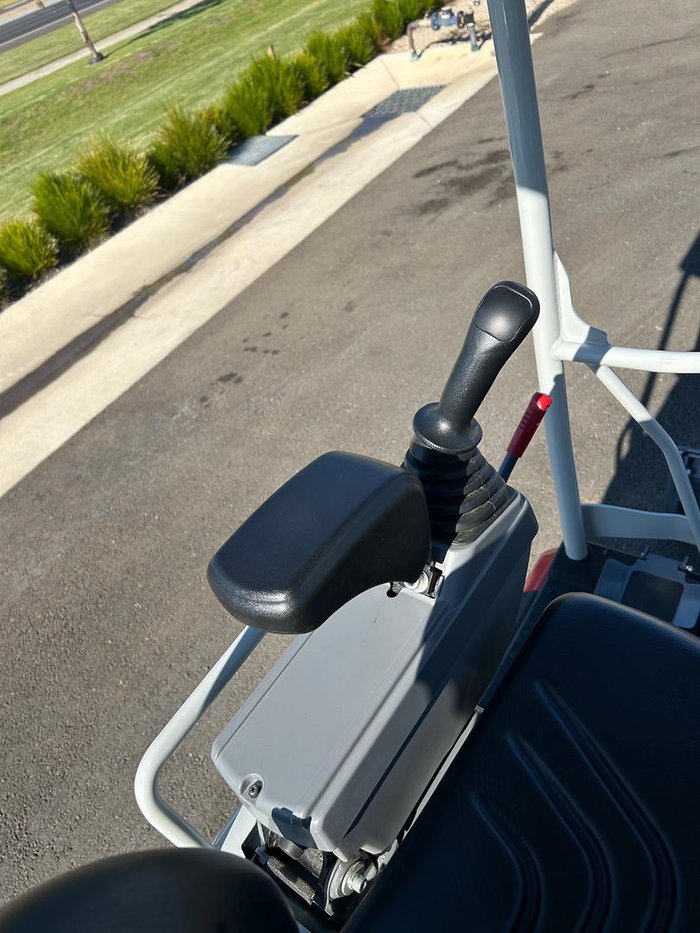

Hydraulic Joystick Controls & Multi-Informational Display
Optional Hydraulic Quick Hitch Circuit
Exceptional Dig Depth & Reach

Performance Specs:
Engine: Yanmar 3TNV70
Rated Output: 11.5 kW @ 2,400 rpm
Max Torque: 52.6 Nm @ 1,800 rpm
Breakout Force (Bucket): 14.0 kN
Arm Digging Force:
9.5 kN (930 mm arm)
8.2 kN (1,130 mm arm)
Travel Speeds:
1st: 2.2 km/h
2nd: 4.2 km/h
Traction Force: 19.4 kN
Slew Speed: 9.2 rpm
Boom Swing: 70° (Left) / 50° (Right)

Hydraulics:
Variable Displacement Pumps (P1, P2)
16.8 L/min @ 21.0 MPa
Gear Pump (P3)
10.8 L/min @ 20.0 MPa
Auxiliary Ports:
Service Port 1: 33.6 L/min @ 21.0 MPa
Service Port 2: 10.8 L/min @ 20.0 MPa
Service Port 3: 20.0 MPa

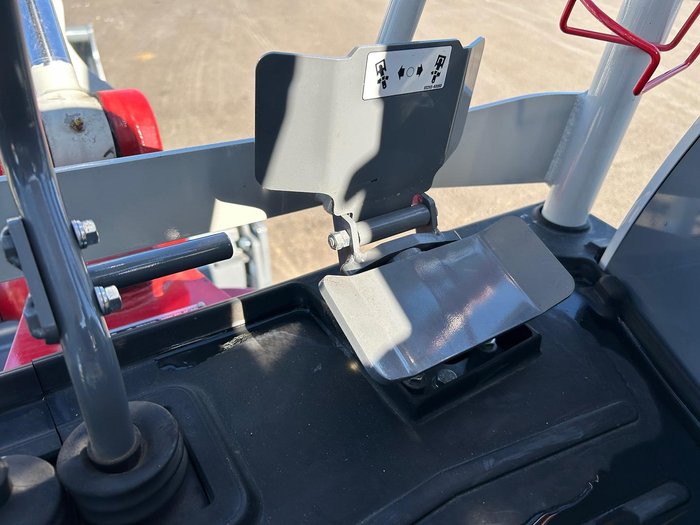

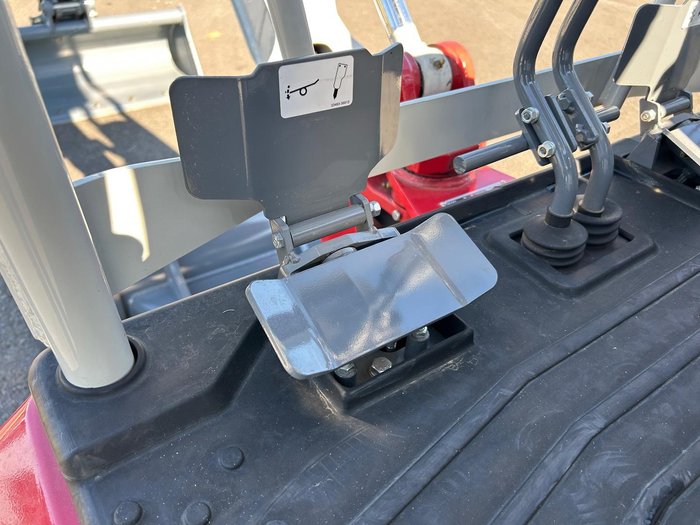

Foot Pedal Control for Service Port 1

Operator Comfort & Safety:
ROPS / TOPS / OPG (TOP Guard Level I)

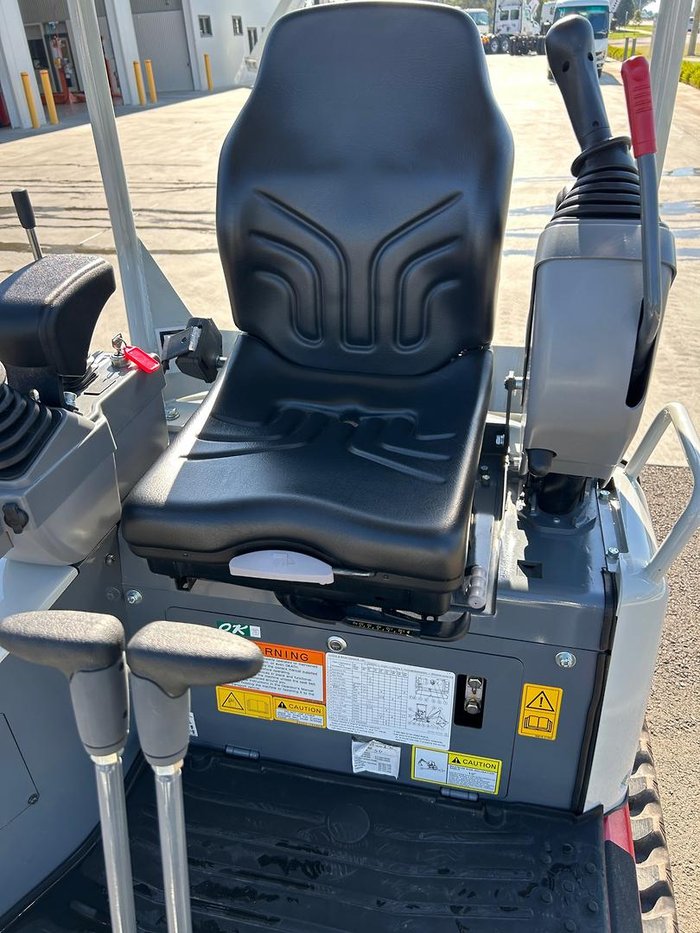

High-back Adjustable Suspension Seat

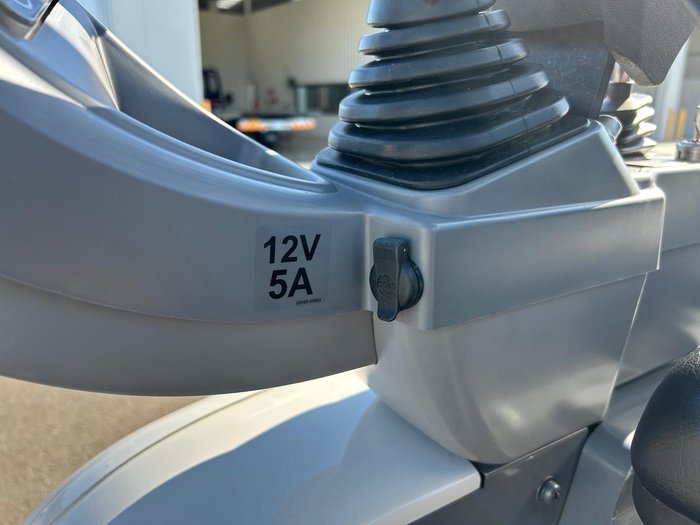

12V Power Outlet, 2" Retractable Seat Belt
Excellent Visibility & Wide Entry
Noise Level: 93 dB LWA
Low Vibration:
Hand/Arm: < 2.5 m/s²
Body: < 0.5 m/s²

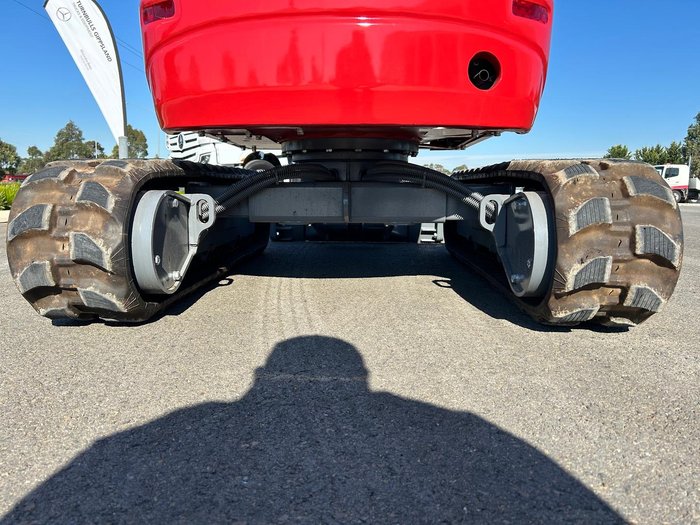

Undercarriage & Frame:
Retractable Track Width: 980 mm – 1,300 mm
Triple Flanged Track Rollers
230 mm Rubber Tracks

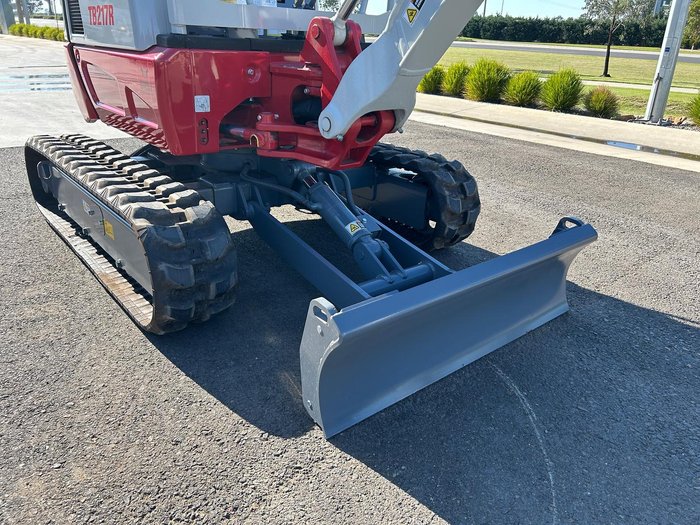

Adjustable Width Dozer Blade
Heavy Counterweight
2-Speed Travel with Auto Shift

Serviceability:
Top-Mounted Boom Cylinder for Protection

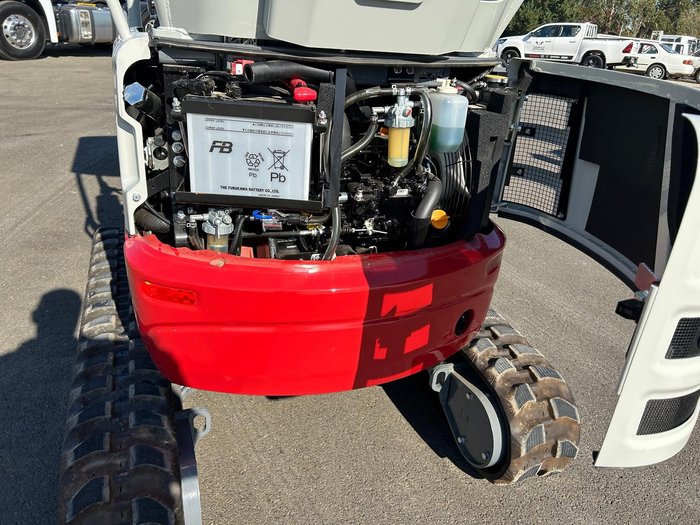

Wide-Opening Engine Cover
Control Valve Access Under Seat
Automatic Fuel Bleed System
High-Capacity Fuel & Hydraulic Filters

Dimensions (with 1,130 mm Arm):
Max Reach: 4,000 mm
Dig Depth: 2,390 mm
Dump Height: 2,545 mm
Overall Width: 980 mm (Retracted) / 1,300 mm (Extended)
Overall Height: 2,345 mm
Ground Clearance: 205 mm
Slew Radius: 730 mm
